LAB POINTS

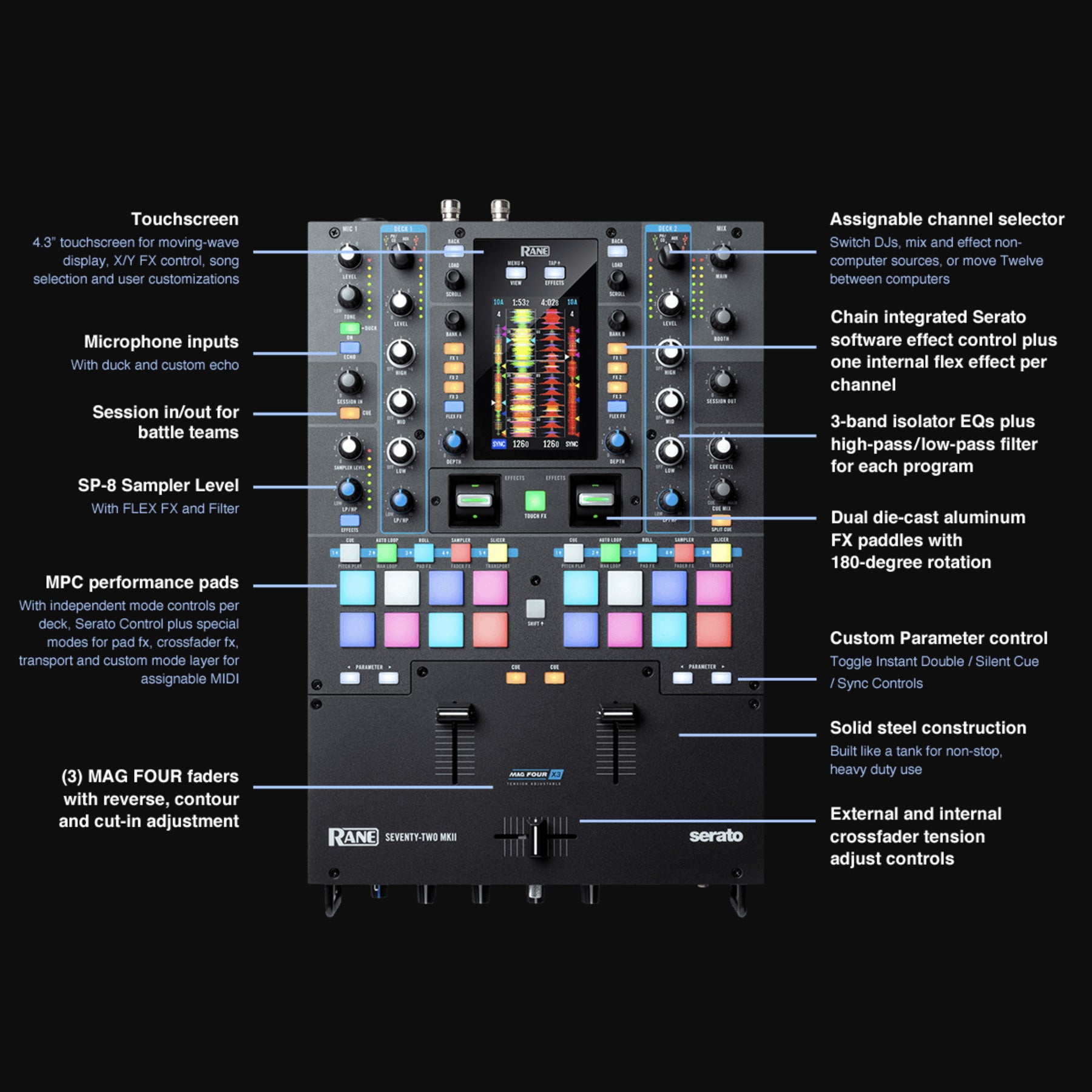

• 2-channel performance mixer w/ advanced Serato DJ Pro control + FX
• full color touchscreen w/ moving-wave display, X/Y FX control, song selection + user customizations

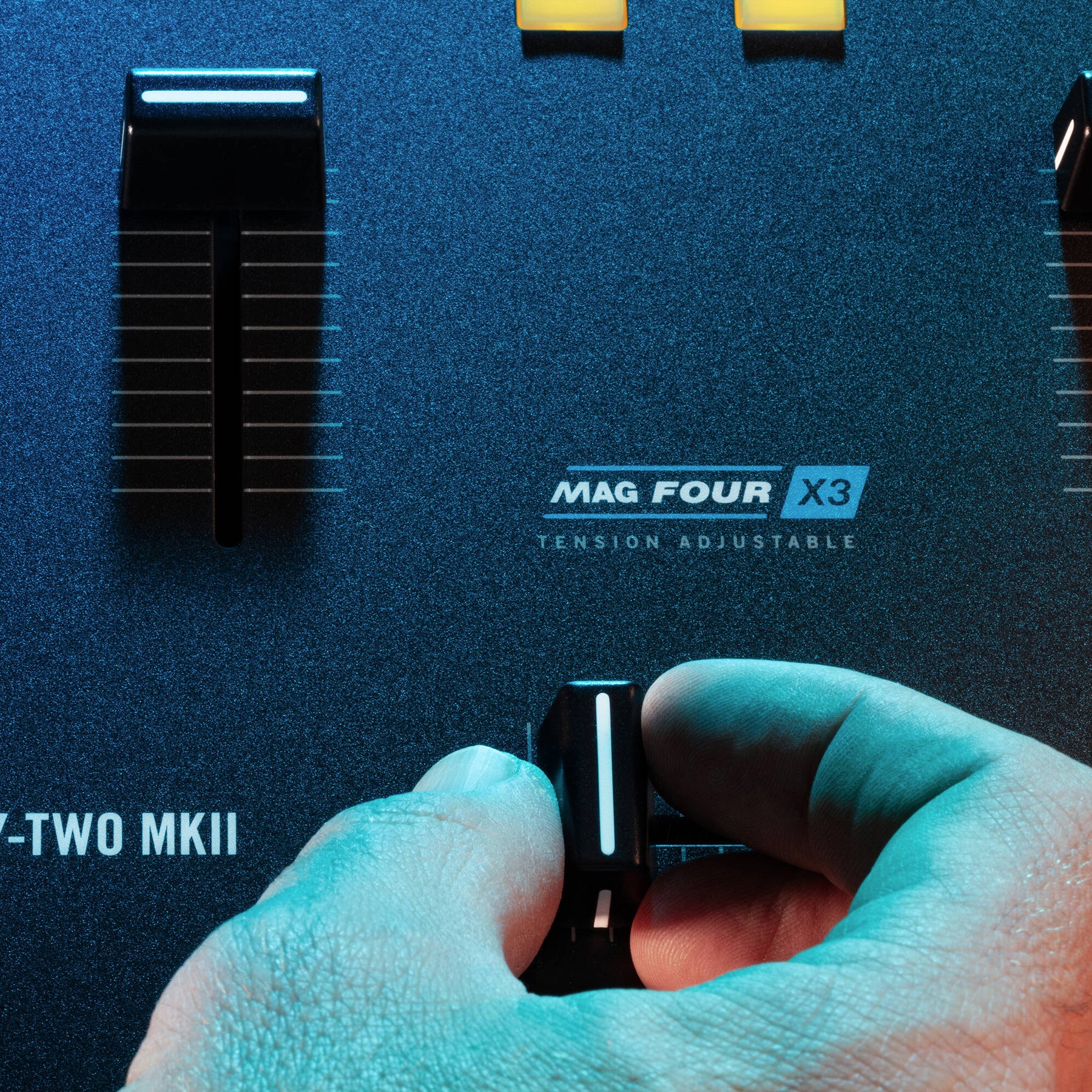

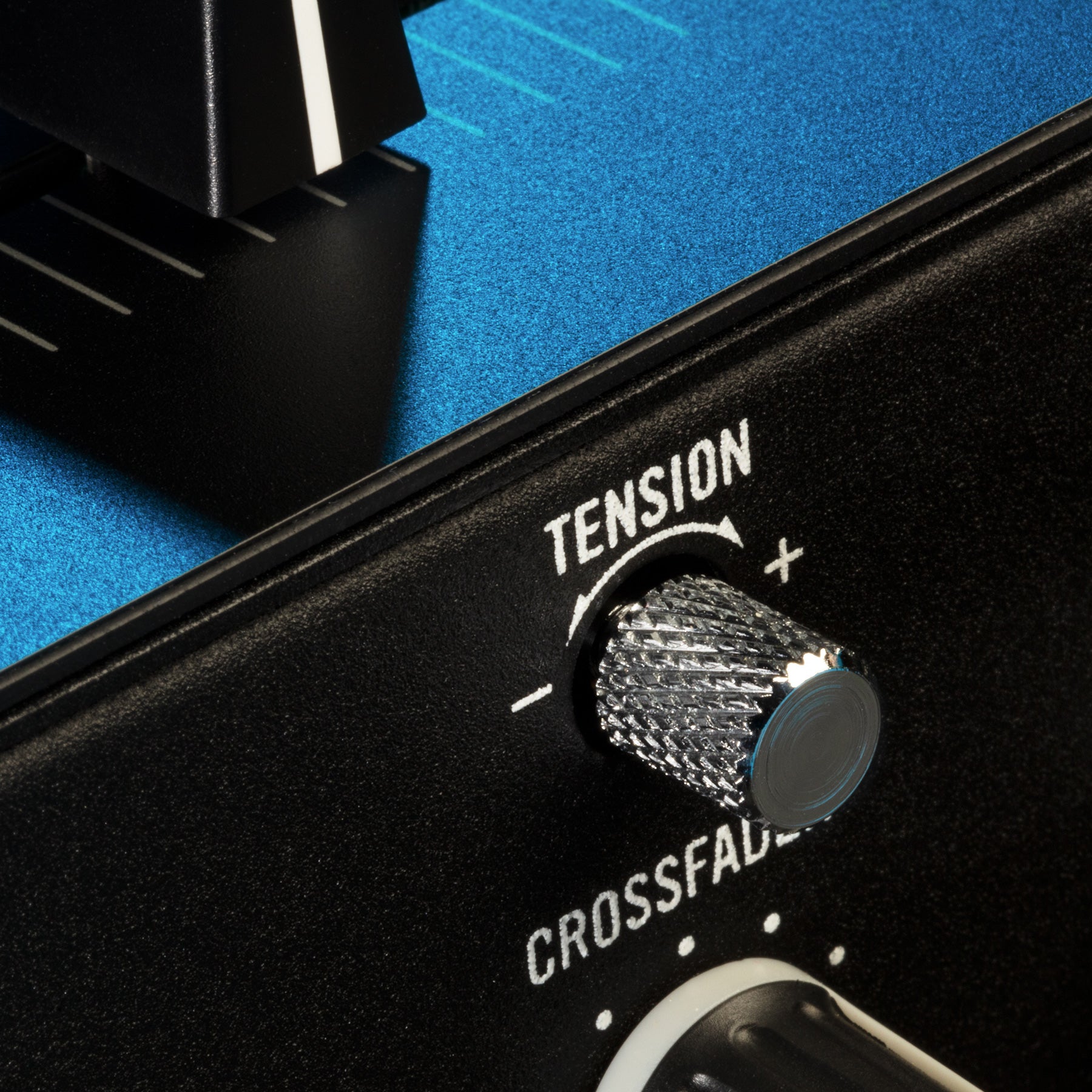

• MAG FOUR contactless tension-adjustable crossfader + channel faders w/ reverse, contour + cut-in adjustment
• chain-integrated Serato software effect control plus one internal FLEX effect per channel (11 Flex FX effects total)
• die-cast aluminum FX paddles with 180-degree rotation
• 8x multi-function trigger pads w/ 4 Pad FX + 14 Pad Modes
• 16x Akai Pro MPC performance pads w/ RGB backlight, adjustable threshold + aftertouch
• 3-band isolator EQ's + high-pass/low-pass filter per channel
• dual USB connections for easy DJ handoffs + simultaneous performance
• assignable USB controller inputs for Rane TWELVE motorized control turntable
• session in/out for team practice + routines
• unlocks Serato DVS w/ included control vinyl, Serato Pitch n Time DJ expansion also included
• heavy duty solid-steel + aluminum casing

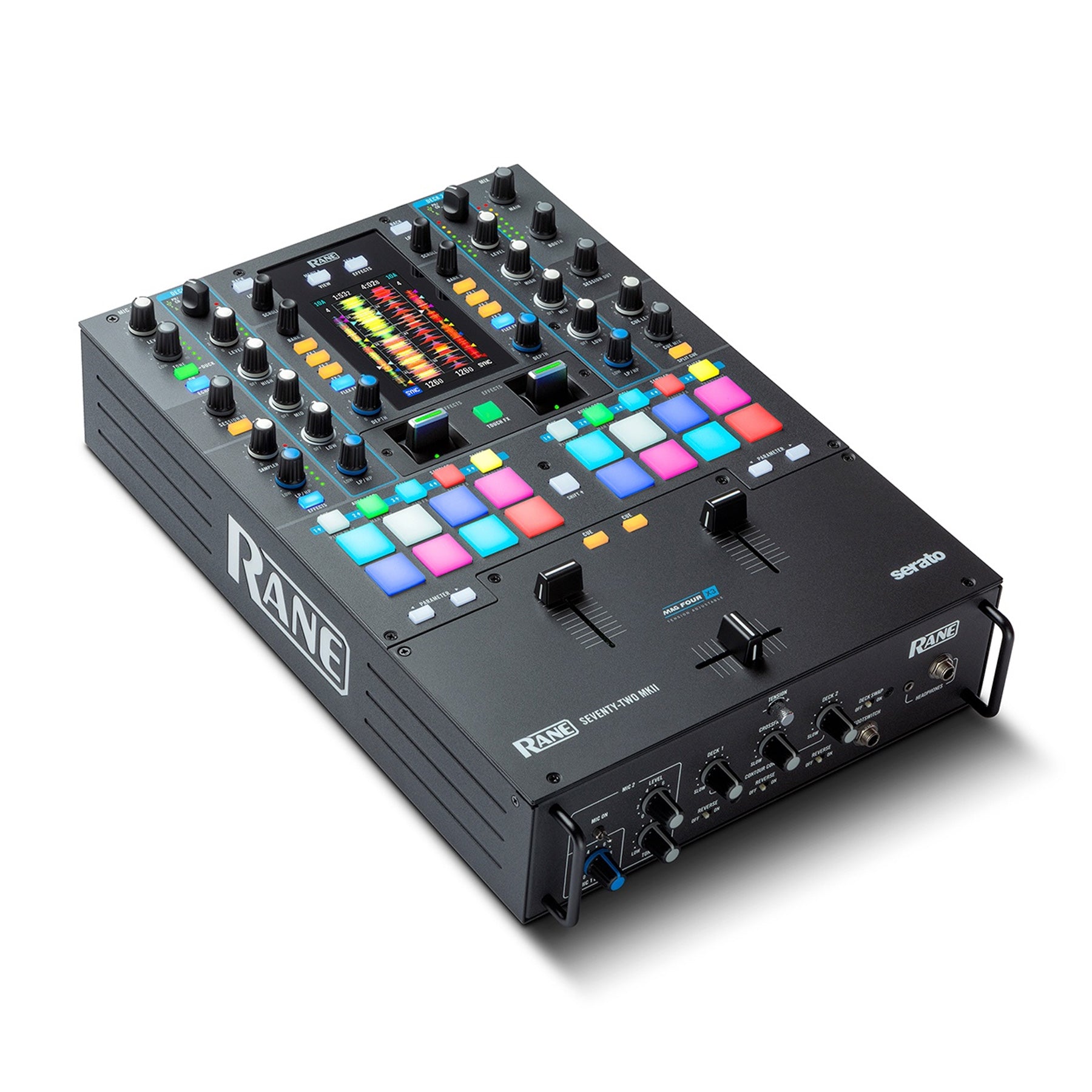

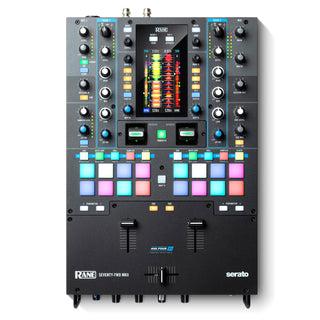

"Featuring a full color touchscreen interface, stackable Serato and Flex FX, plus the ultimate in expressive playback control via eight multi-function trigger pads, the Rane Seventy-Two MKII redefines the scope and possibilities for Pro, Club and Scratch DJ/Turntablists." - Rane

TECH SPECS

• display: full-color display with capacitive multi-touch
• pads: 16x velocity-sensitive multi-color back-lit (8 per deck, 10 modes each)
• faders: 3x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader)
• Flex FX: Echo, Hold Echo, Duck Echo, Reverb, Filter, Phaser, Auto Gate, Flanger, Delay, Ping Pong Delay, Beat-Breaker
• Pad FX: Echo, Brake, Reverse, Gate
• Pad Modes: Cue, Pitch Play, Auto Loop, Manual Loop, Roll, Pad FX, Sampler, Fader FX, Flip (requires purchase of Serato Flip expansion), Slicer, Transport, Slicer Loop, Flip, 3 Custom Pad Sets

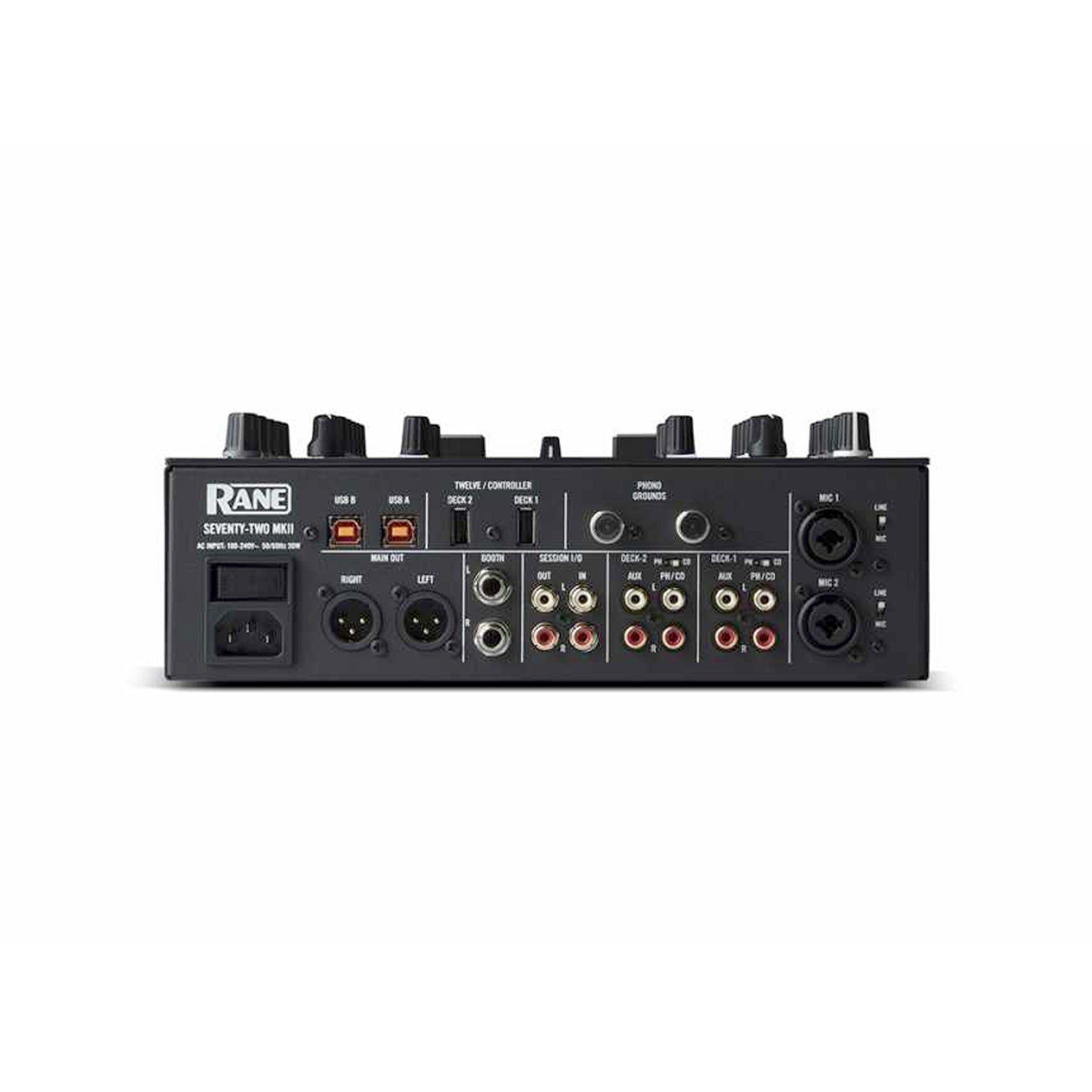

• outputs: 2x XLR (Main) / 2x 1/4” (6.35 mm) TRS (Booth) /1x RCA stereo pair (Session) / 1x 1/4” (6.35 mm) TRS (Headphones) / 1x 1/8” (3.5 mm) TRS (Headphones)
• inputs: 4x RCA stereo pairs (Deck 1–2) / 2x XLR / 1/4” (6.35 mm) TRS (Mic 1–2) / 1x RCA stereo pair (Session) / 1x 1/4” (6.35 mm) TRS (Footswitch)
• USB:  2x USB Type-A ports (Deck 1–2 USB Controllers) / 2x USB Type-B ports
• converters: AKM High Definition Audio; 24-bit PCM, 48 kHz (AD / DA)
• digital signal processing: 32-bit, floating point, double precision
• system requirements: Mac OS X 10.11 and up, Windows 7 / 8.1 / 10
• dimensions: 11.2" x 17.5" x 4.25" / 28.4 x 44.5 x 10.8 cm
• weight: 12 lbs / 5.46 kg

COMES WITH

• Official Serato Control Vinyl
• Serato DVS (unlocked by mixer + included control vinyl)
• Serato Pitch n Time DJ expansion
