VNL Replacement Stylus

SKU rs-174

replacements for Ortofon's versatile DJ stylus, (3) different levels of rigidity available
Write a review
| Ask a question
sale $44.99
TTL Rewards icon Earn up to 449 Reward Points with this purchase! Read more
  • Get more info on our FREE SHIPPING terms
  • 📦 Standard Shipping ships within 1-3 Business Days
  • 🌎 International Shipping Experts, Fully Tracked
  • ⇨ Need a gear recommendation or a customized package?
  • Contact our support team for all your questions!

    Contact support for recommendations or customization questions

    We answer requests Mon-Fri 10am-6pm EST

  • Lab Overview
  • Review & Q+A
  • Tagged

Lab Overview

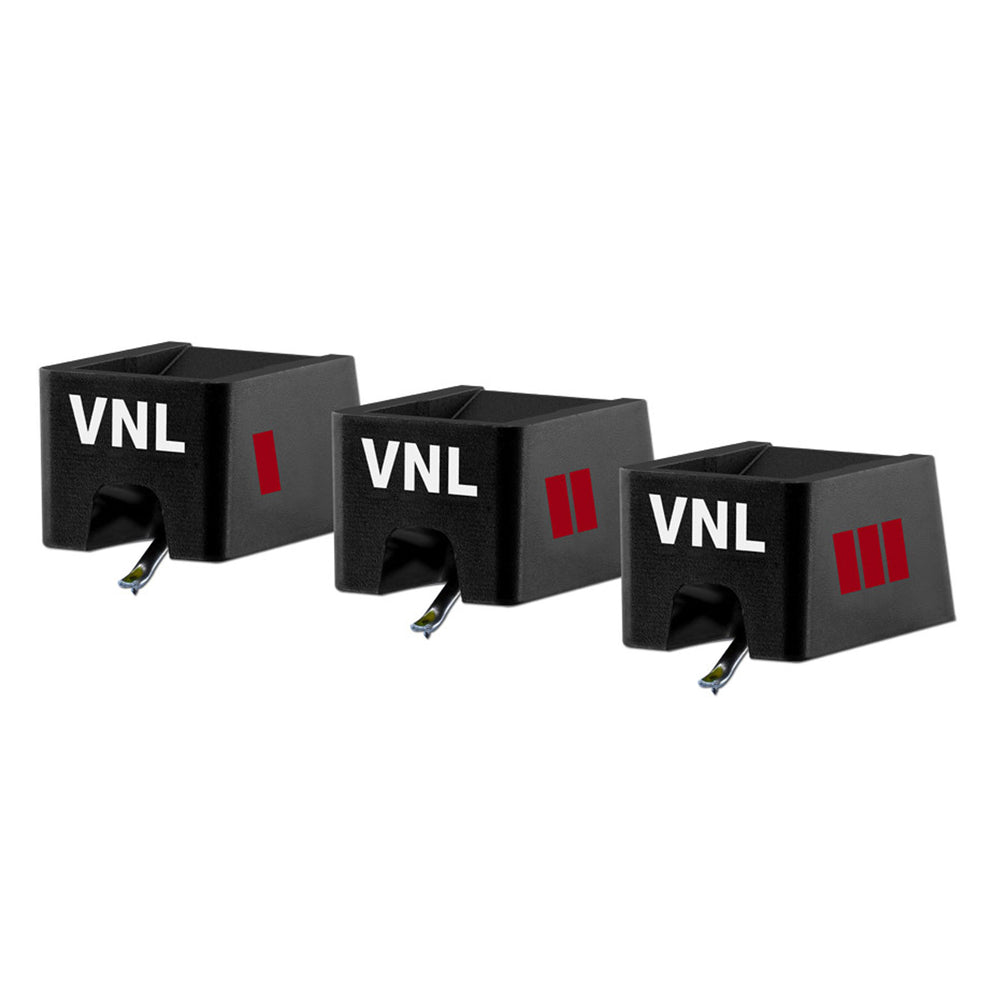

Replacement styli for Ortofon's VNL DJ cartridge. The difference between the three options are their respective compliances (springiness/rigidity) and by extent their recommended tracking forces. A stylus' compliance tells you how firm or soft the suspension of a cartridge's stylus assembly is. Stylus compliance and effective mass of the tonearm + cartridge together determine the mechanical resonance frequency of the arm/cartridge system. The three options provided by Ortofon enable a DJ to get that "just right" feel for scratching & back-queuing.

"DJs can easily identify which stylus type best suits their individual DJ style and enables their absolute best performance capability." - Ortofon

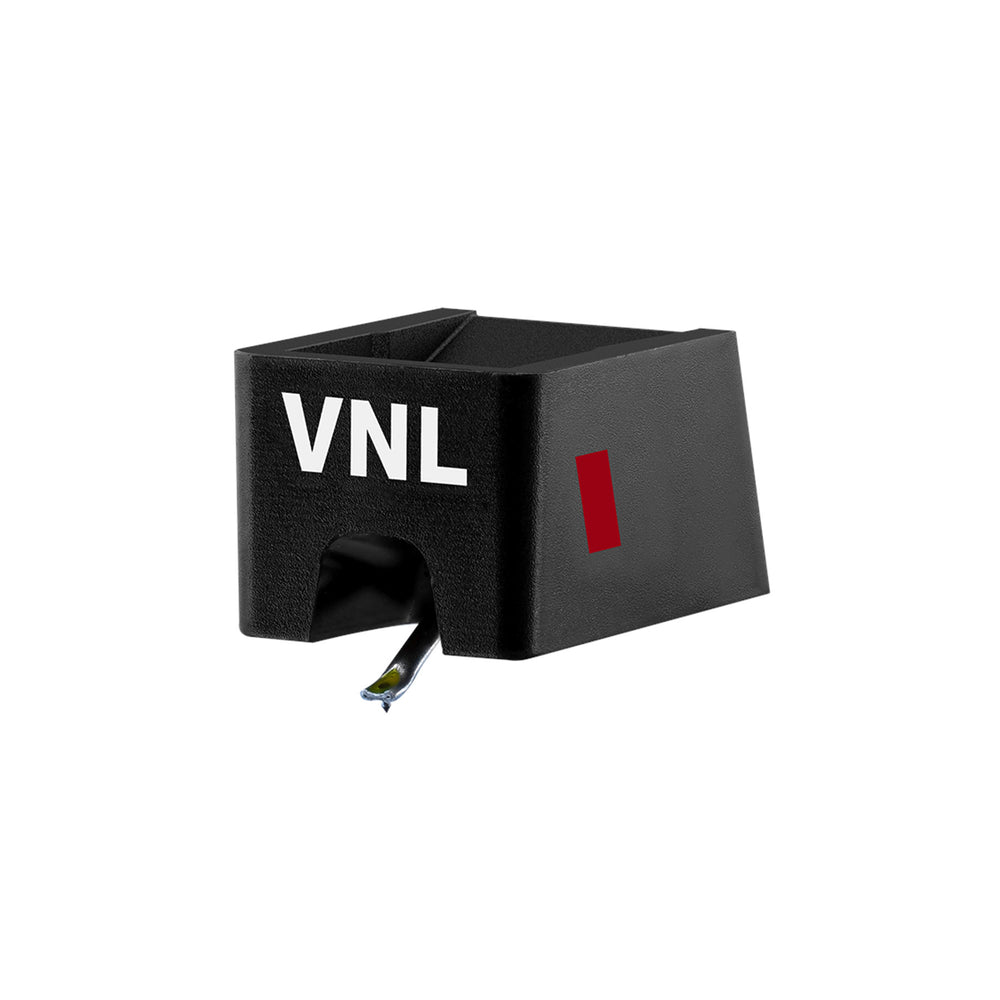

Stylus VNL I - Flexible

  • Output voltage at 1000Hz, 5cm/sec. - 6 mV
  • Channel separation at 1kHz - 20 dB
  • Frequency response 20 Hz - 20 kHz -2/+4 dB
  • Tracking ability at 315 Hz at recommended tracking force - 100 μm
  • Compliance, dynamic lateral - 16 μm/mN
  • Tracking force range: 3 - 5g
  • Recommended tracking force: 4g

Stylus VNL II - Rigid

  • Output voltage at 1000Hz, 5cm/sec. - 6 mV
  • Channel separation at 1kHz - 20 dB
  • Frequency response 20 Hz - 20 kHz -2/+4 dB
  • Tracking ability at 315 Hz at recommended tracking force - 90 μm
  • Compliance, dynamic lateral - 15 μm/m N
  • Tracking force range: 3 - 5g
  • Recommended tracking force: 4g

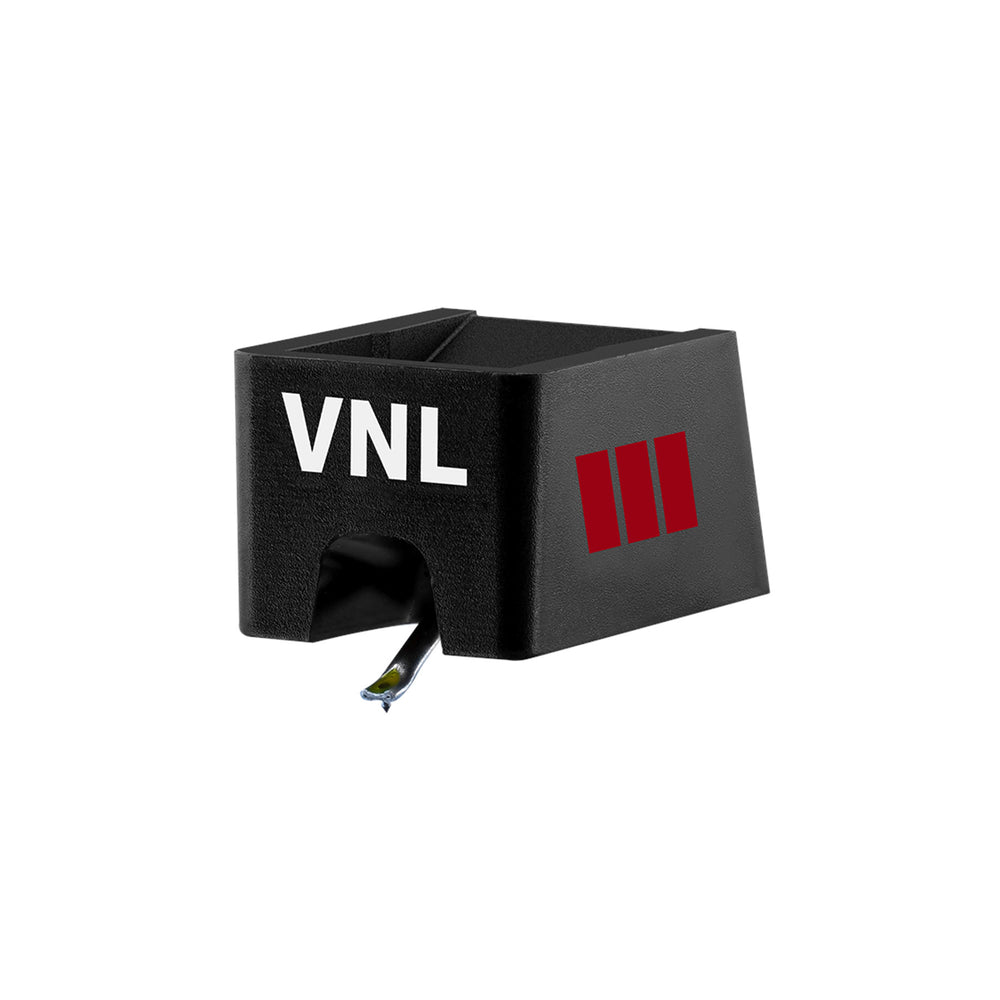

Stylus VNL III - Firm

  • Output voltage at 1000Hz, 5cm/sec. - 6 mV
  • Channel separation at 1kHz - 20 dB
  • Frequency response 20 Hz - 20 kHz -2/+4 dB
  • Tracking ability at 315 Hz at recommended tracking force - 90 μm
  • Compliance, dynamic lateral - 14 μm/mN
  • Tracking force range: 3 - 5g
  • Recommended tracking force: 4g
UPC: 5705796130232, 5705796130225, 5705796130249
