📌LAB POINTS

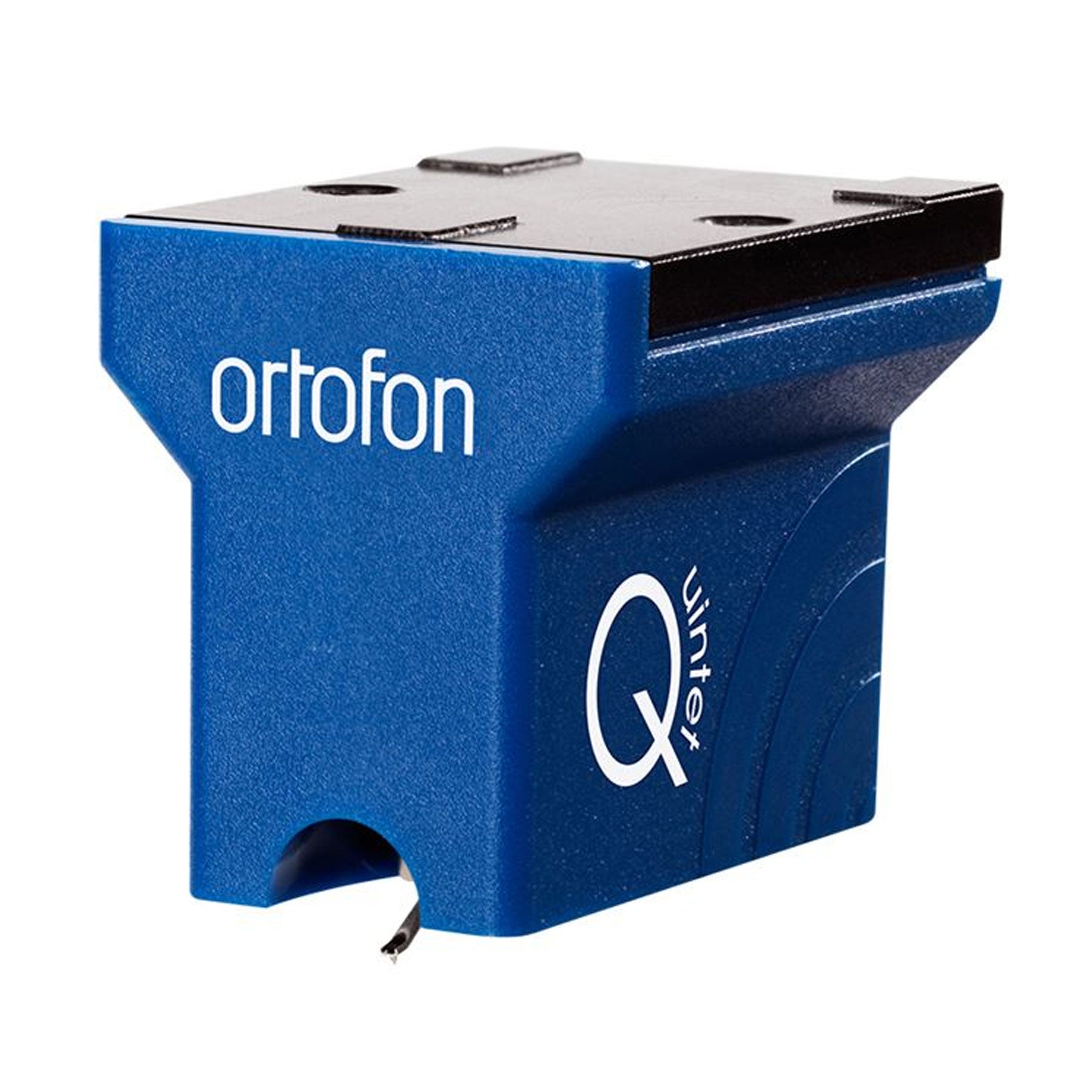

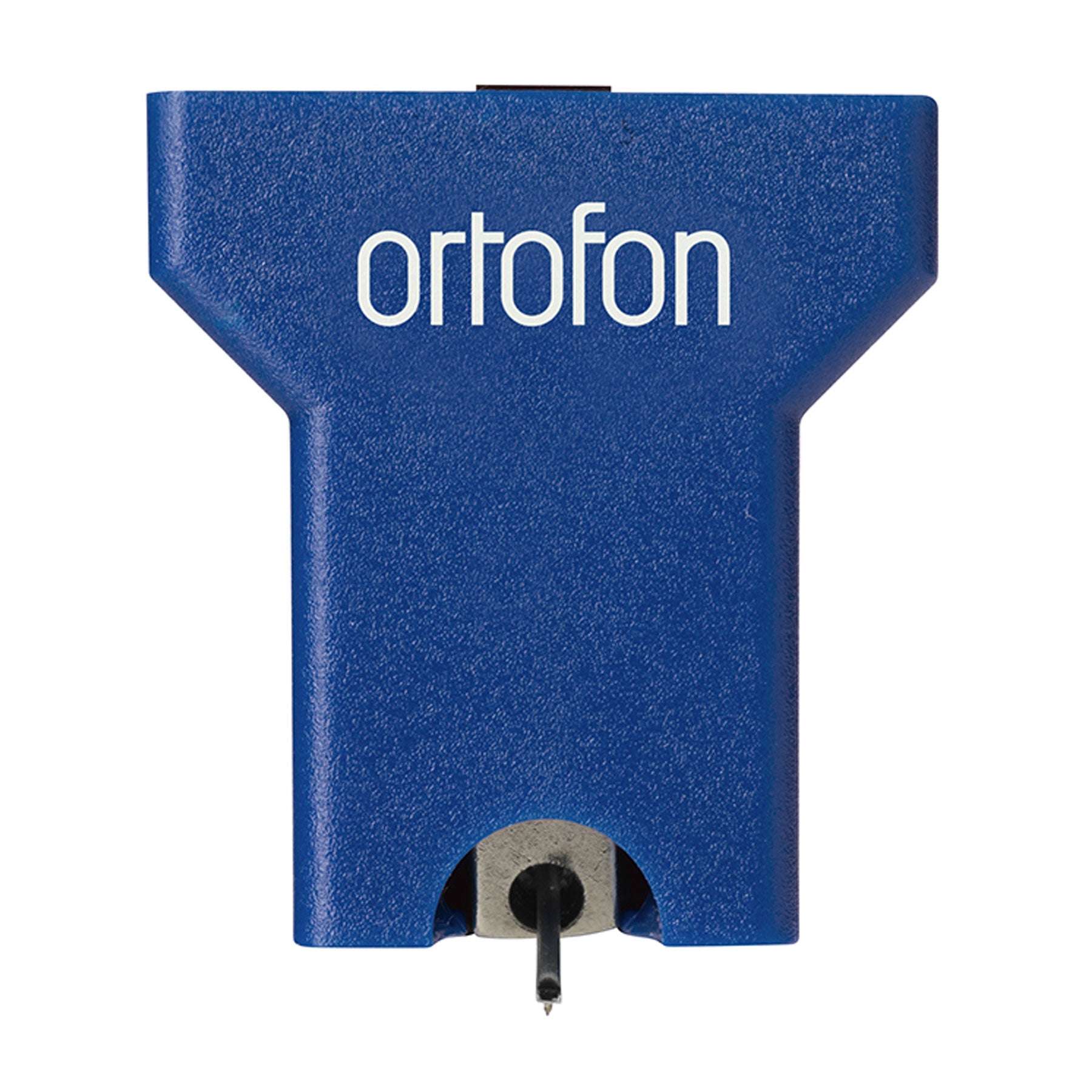

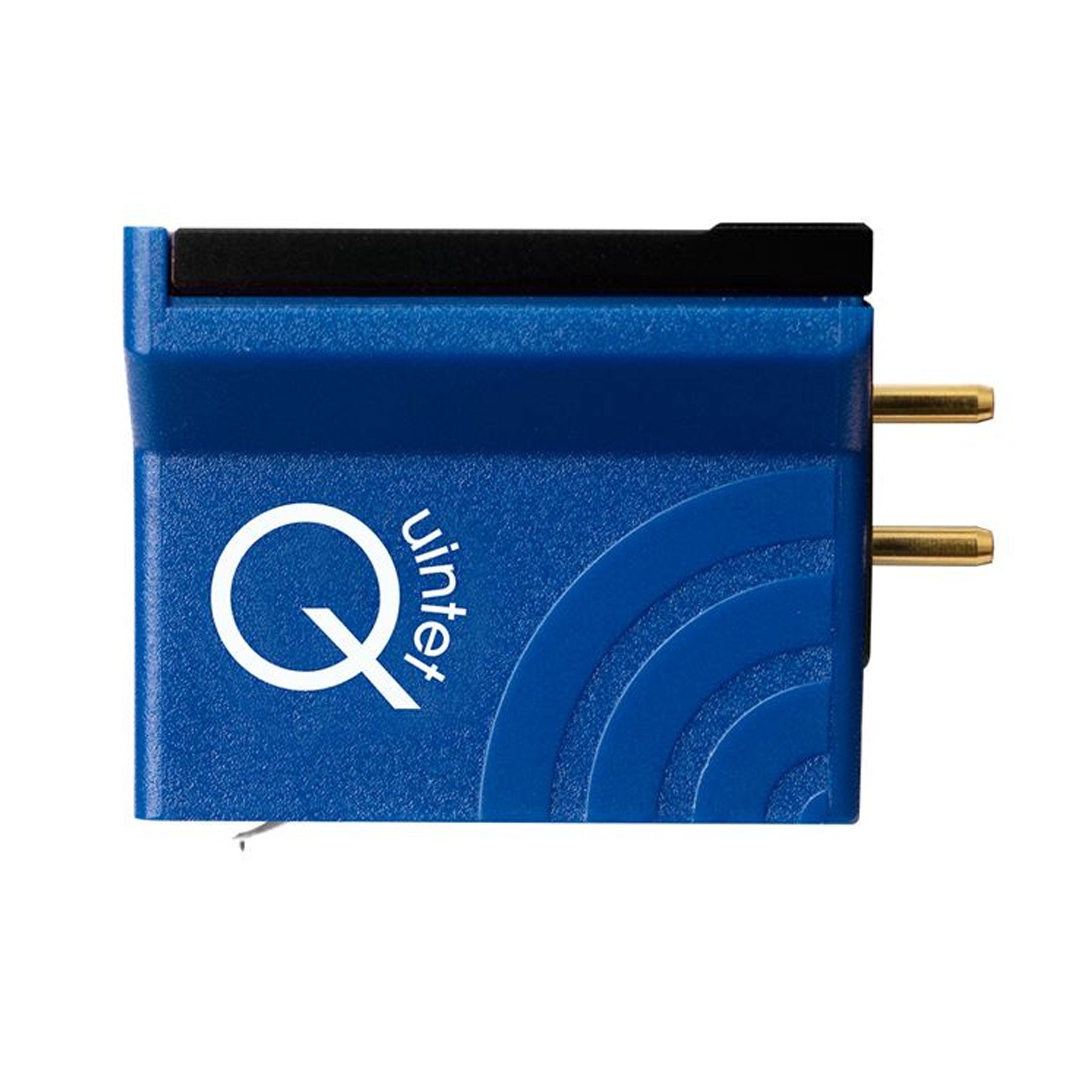

• recommended moving coil (MC) cartridge in Ortodon's Quintet series, a step up from the Quintet Red
• nude elliptical diamond stylus
• spacious, deep + detailed sound; a  very good choice for any kind of music, especially rhythmic
• body constructed from lightweight, impact-resistant ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
• low internal impedance for compatibility w/ a wide range of preamps + transformers

"The Quintet Blue is a very homogeneous cartridge. The Quintet Blue's sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever." - Ortofon

🔎TECH SPECS

• Type: Moving Coil
• Output voltage at 1 kHz 5 cm/sec: 0.5 mV
• Channel balance: < 1.5 dB
• Channel separation at 1 kHz: > 21 dB
• Channel separation at 15 kHz: > 14 dB
• Frequency response 20-20.000 Hz: +/-2.5 dB
• Tracking ability at 315 Hz at recommended tracking force *): 70 μm
• Compliance, dynamic, lateral: 15 μm/mN
• Stylus type: Nude Elliptical
• Stylus tip radius: r/R 8/18 μm
• Tracking force range: 2.1-2.5 g (21-25 mN)
• Tracking force recommended: 2.3 g (23 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 7 Ohm
• Recommended load impedance: >20 Ohm
• Cartridge body material: ABS/Aluminium
• Coil wire material: Pure 4-nines silver
• Cartridge colour: Blue
• Cartridge weight: 9 g
